When a control cabinet becomes crowded, noisy, and difficult to manage, small inefficiencies quickly turn into real operating problems. One forgotten light circuit, one motor left energized, or one poorly organized switch layout can waste time every day. The PN16 16way Intelligent Wifi ZigBee Power Control Switch is designed to bring order back to complex electrical control. Instead of walking panel to panel and guessing which load is active, you get a clean, structured way to manage up to sixteen outputs with confidence.
The experience is immediate. The panel presents channel status clearly through LED indicators, so operators can understand what is running at a glance. The buttons provide direct local control when hands-on action is needed, while smart connectivity opens the door to remote switching, timed routines, and integrated control logic. The enclosure feels purposeful and robust, made for real electrical environments rather than decorative consumer use.
What makes this product valuable is not just that it can switch power. It helps reduce confusion, shortens response time, and makes multi-load control feel deliberate instead of improvised. In hotels, villas, offices, equipment rooms, and smart distribution projects, the PN16 turns a dense set of circuits into something visible, manageable, and easier to trust. It is the kind of product that quietly improves the rhythm of daily operation: fewer manual steps, cleaner control logic, and better continuity after outages.
The PN16 is built around practical advantages that matter in real installations, especially when multiple loads need stable, centralized control.
16-way control in one device
Manage lighting, sockets, curtains, pumps, fans, signage, or other branch loads from a single organized controller instead of scattering relays across multiple modules.
Mixed high-load and standard-load design

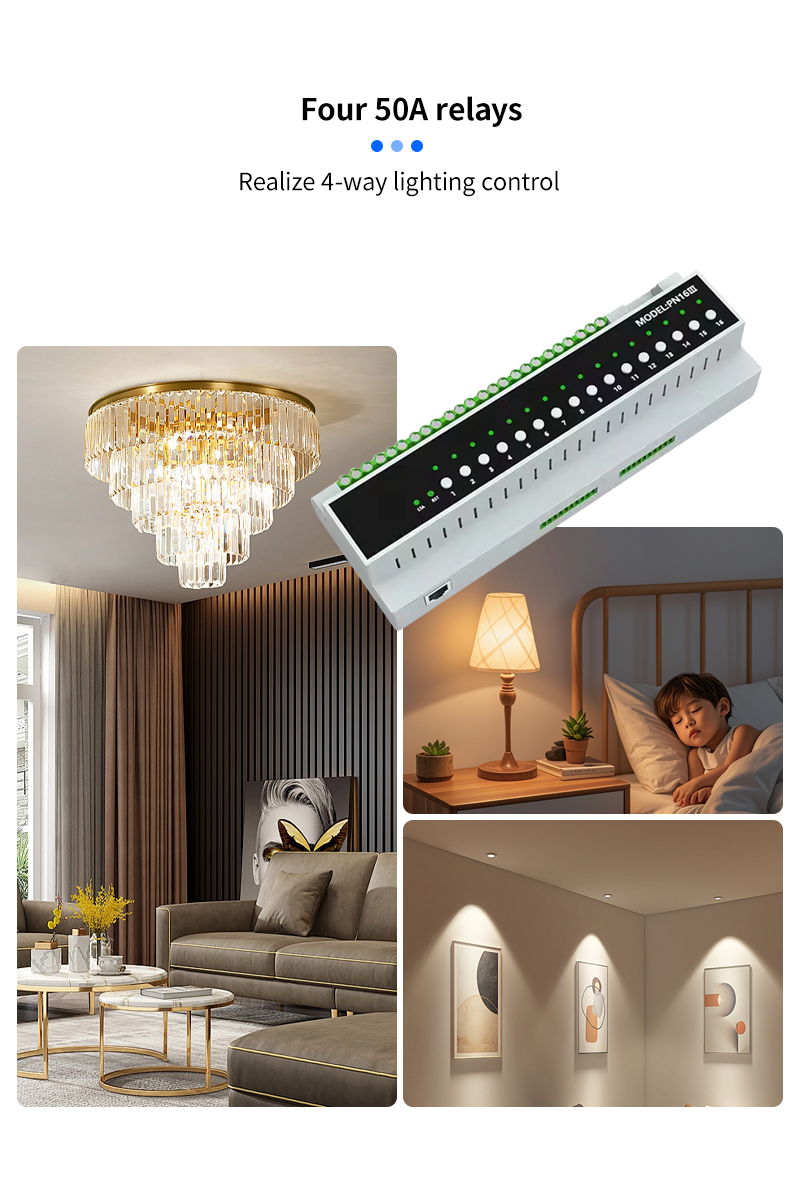

The first four channels use 50A magnetic latching relays, while channels 5–16 use 16A relays. This lets one controller handle both heavier circuits and routine branch loads more efficiently.
Clear visual feedback
LED indicators on the panel show the status of each channel, reducing guesswork during setup, maintenance, or troubleshooting.
Flexible control methods

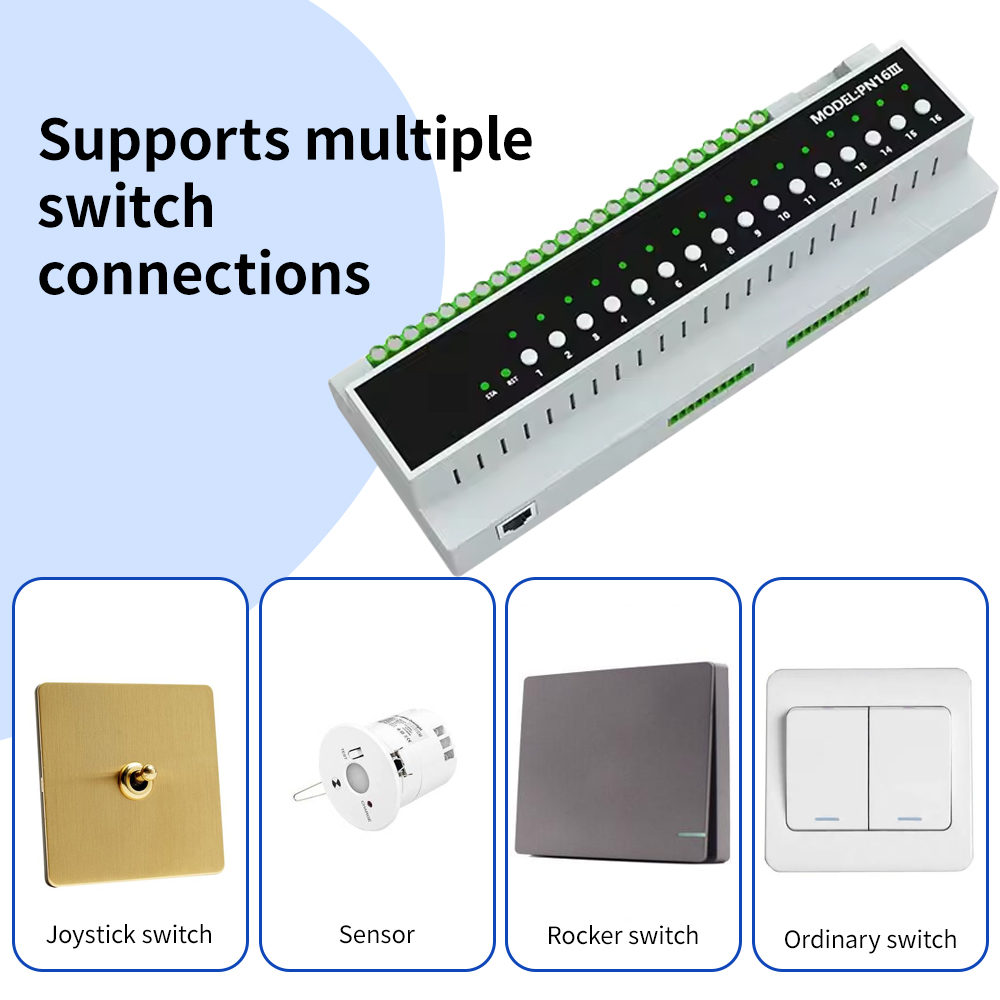

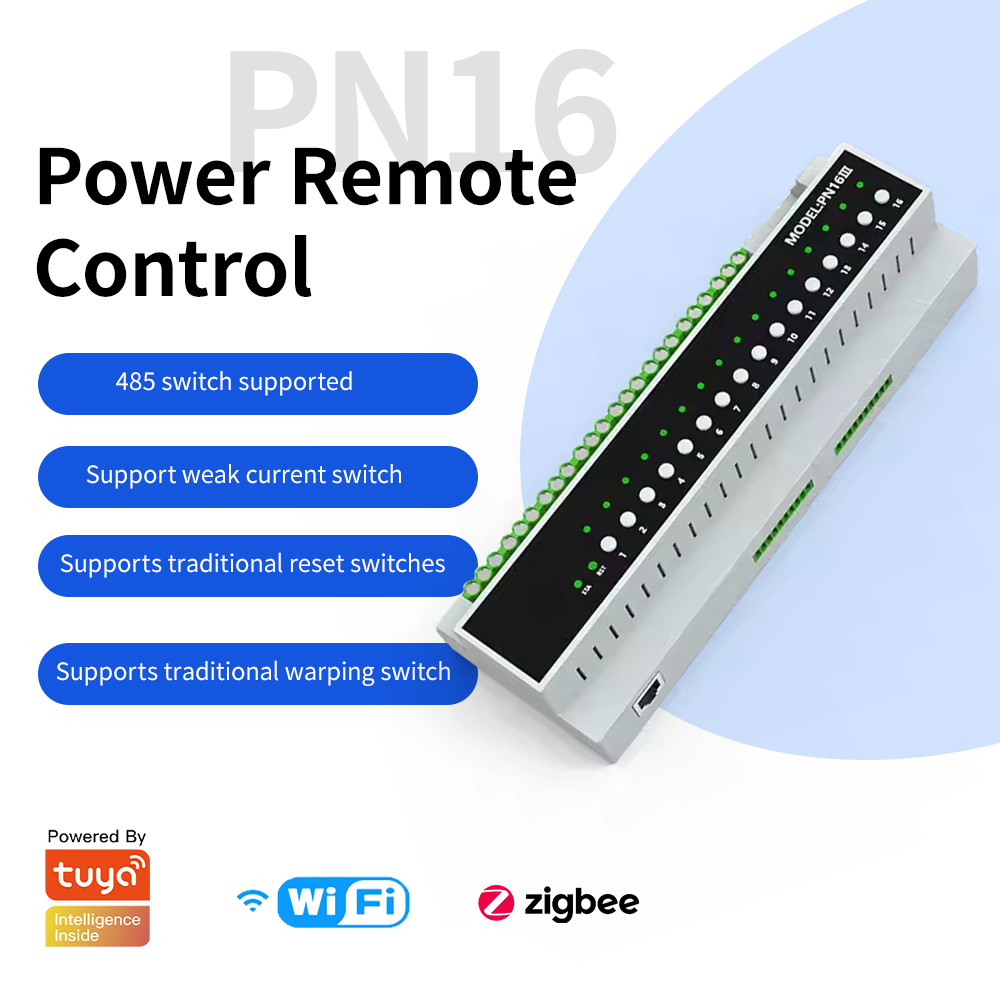

The controller supports RS485, dry contact switches, reset switches, and rocker switches, making it easier to fit into existing control logic without forcing a full redesign.

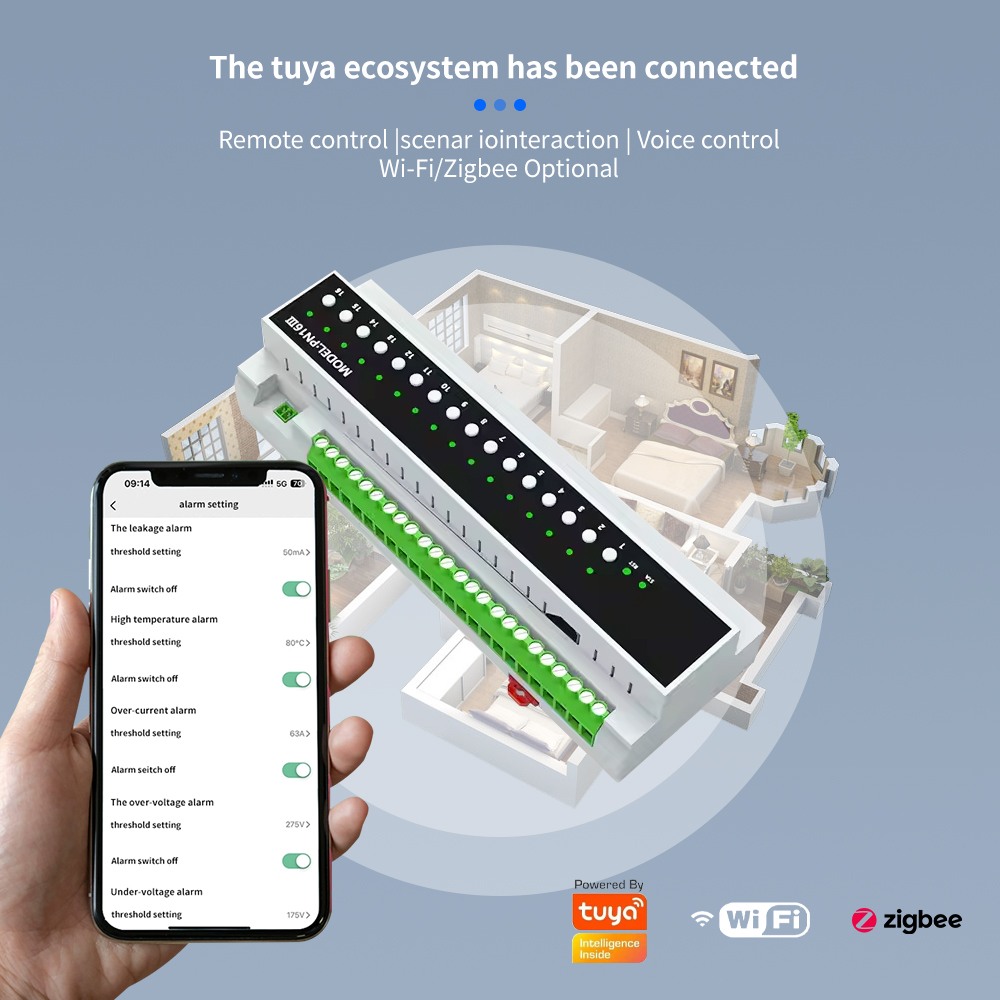

Optional smart communication
WiFi or ZigBee versions allow the system to align with different project architectures and gateway preferences.
Smarter restart behavior after outages
Three power recovery modes help the system restart the way the application demands, improving safety, continuity, and operational consistency.
This is a controller designed not just to switch loads, but to simplify how people interact with them.

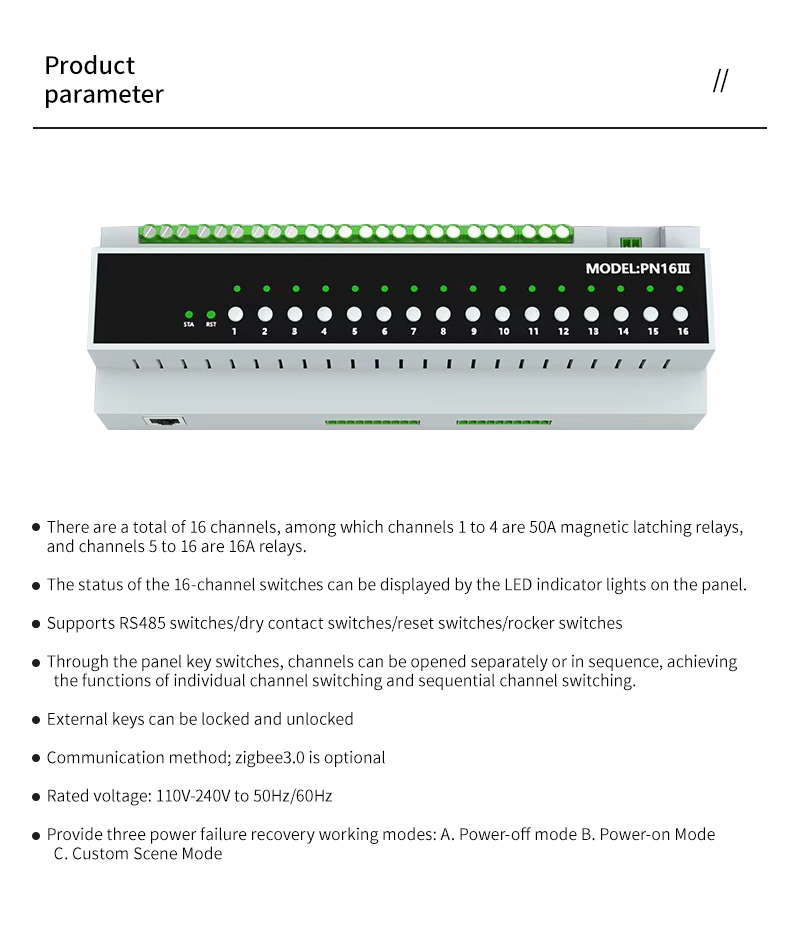

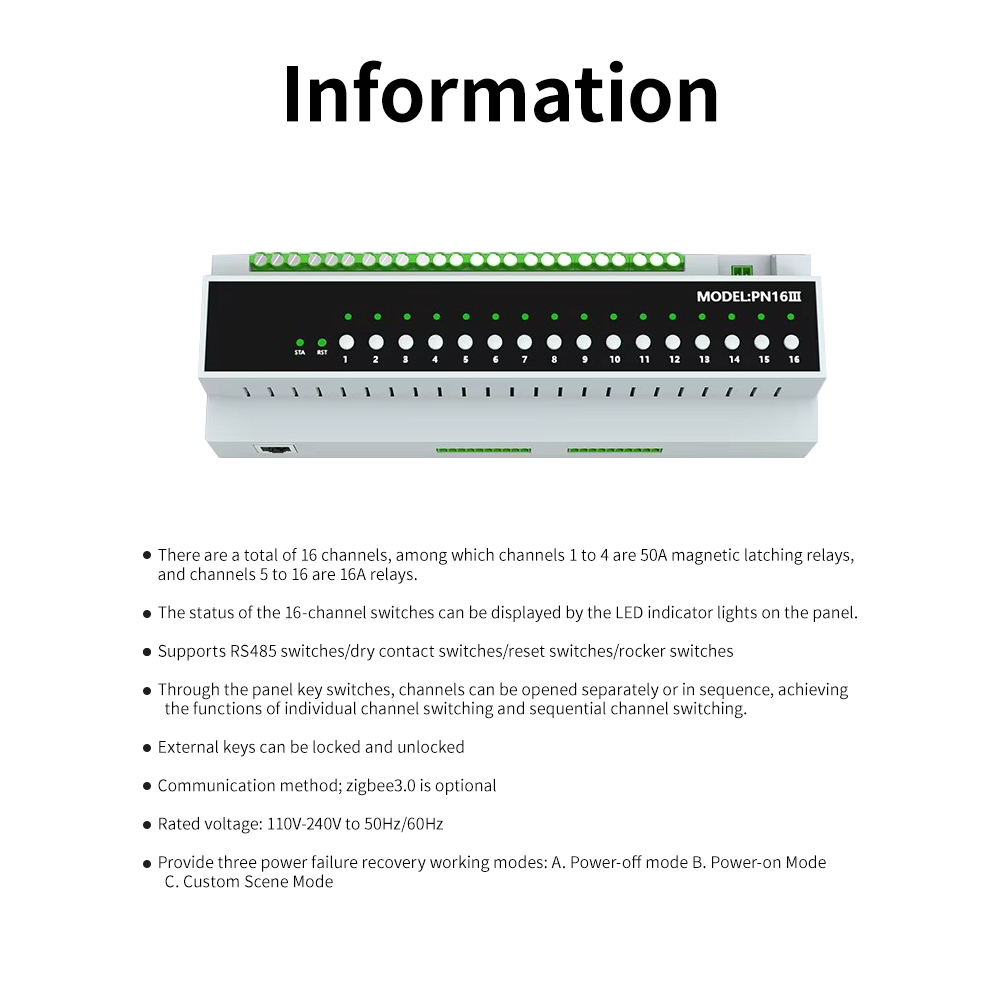

| Parameter | Specification |
| Product Name | 16way Intelligent Wifi ZigBee Power Control Switch PN16 Signal Controller |
| Model | PN16 |
| Total Channels | 16 |
| Relay Channels 1–4 | 50A magnetic latching relays |
| Relay Channels 5–16 | 16A relays |
| Status Display | LED indicator lights on the panel |

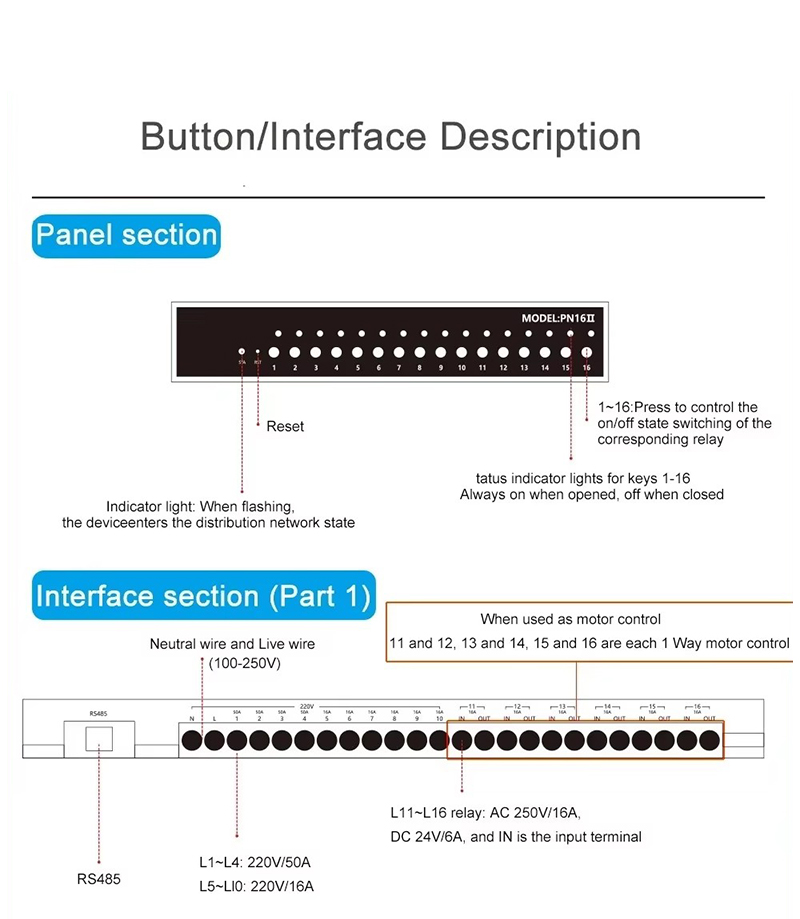

| Supported External Control | RS485 switch / dry contact switch / reset switch / rocker switch |
| Local Control | Panel key switching, individual channel switching, sequential channel switching |

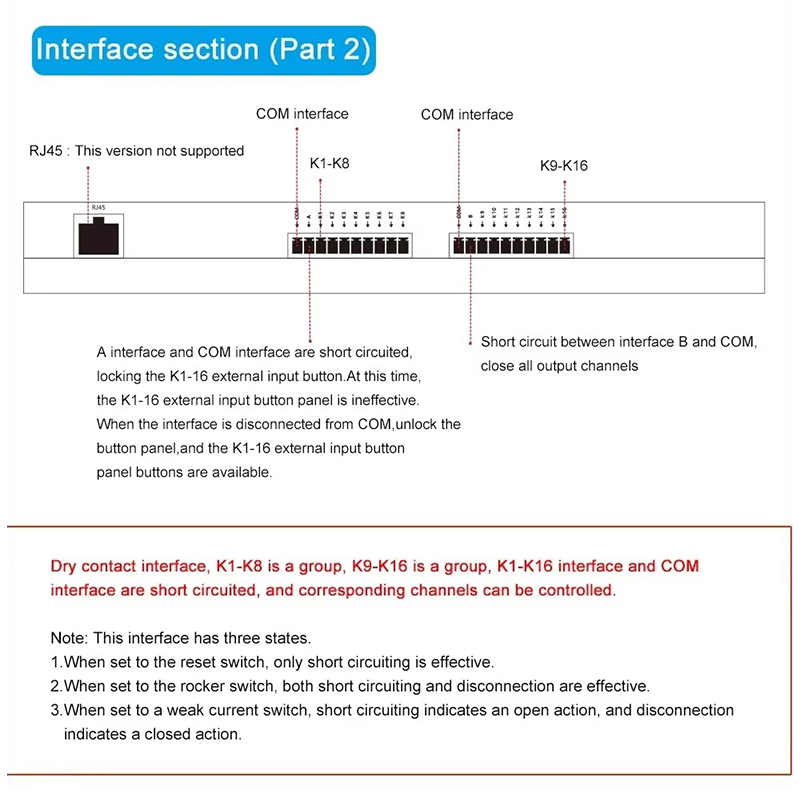

| Key Lock Function | External keys can be locked and unlocked |
| Communication Method | ZigBee 3.0 optional / WiFi optional |
| Rated Voltage | 110V–240V |
| Frequency | 50Hz / 60Hz |
| Power Failure Recovery Modes | Power-off Mode / Power-on Mode / Custom Scene Mode |
| Brand | PEOPLE |
A strong multi-channel controller should fit the project instead of forcing the project to fit the controller. That is one of the PN16’s biggest strengths. It supports several control methods, allowing it to work in both straightforward and layered installations. If the site already uses external wall switches, low-current trigger signals, or centralized control through RS485, the PN16 can be integrated without making the wiring strategy feel unnatural.
This flexibility matters because real installations are rarely identical. Some projects prioritize remote control. Others need dependable local switching inside a cabinet. Some require a staged upgrade path where conventional control remains in place while smart control is gradually added. The PN16 makes that transition smoother.
Its optional WiFi or ZigBee communication also makes deployment more adaptable. Where direct wireless networking is preferred, WiFi can be a practical choice. Where a larger smart ecosystem benefits from device coordination and mesh stability, ZigBee is a strong fit. This means designers and installers are not boxed into a single communication philosophy.
Works with multiple control interfaces
Supports local and remote operation
Adapts to different site control habits
Helps reduce rewiring in upgrade projects
Creates a cleaner path from manual control to smarter automation
A switch controller becomes much more useful when it behaves intelligently after the power flickers, the site closes for the night, or the operator wants repeatable daily routines. The PN16 is built for exactly that kind of control discipline.
Through panel switching and optional smart connectivity, channels can be opened individually or in sequence. That may sound simple, but in practice it changes the feel of system management. Sequential switching can reduce sudden inrush behavior in some applications and makes startup routines more controlled. Individual channel switching gives users precision, which is critical when different loads follow different schedules or service priorities.
The power failure recovery logic is equally important. Instead of leaving restart behavior to chance, the PN16 provides three working modes after power restoration: Power-off Mode, Power-on Mode, and Custom Scene Mode. That means the system can stay off for safety, come back automatically for continuity, or recover according to a planned scene strategy. In busy environments, this reduces manual reset work and prevents unnecessary interruptions.
Supports individual channel control
Supports sequential channel control
Offers three restart behaviors after power loss
Improves continuity for routine operations
Helps make electrical behavior more predictable after outages
Electrical products earn trust when they are easy to read, easy to operate, and easy to service. The PN16 is designed with that operational reality in mind. The front-panel LED indicators give immediate channel visibility, which reduces the need to trace outputs one by one when diagnosing a problem or confirming a command. In a busy cabinet, that visibility saves time every single day.
The physical key operation is also valuable. Not every task should require a phone, gateway, or software layer. Sometimes an installer, technician, or operator needs to stand in front of the panel and act immediately. The PN16 supports that direct interaction while still fitting into a smarter overall control architecture.

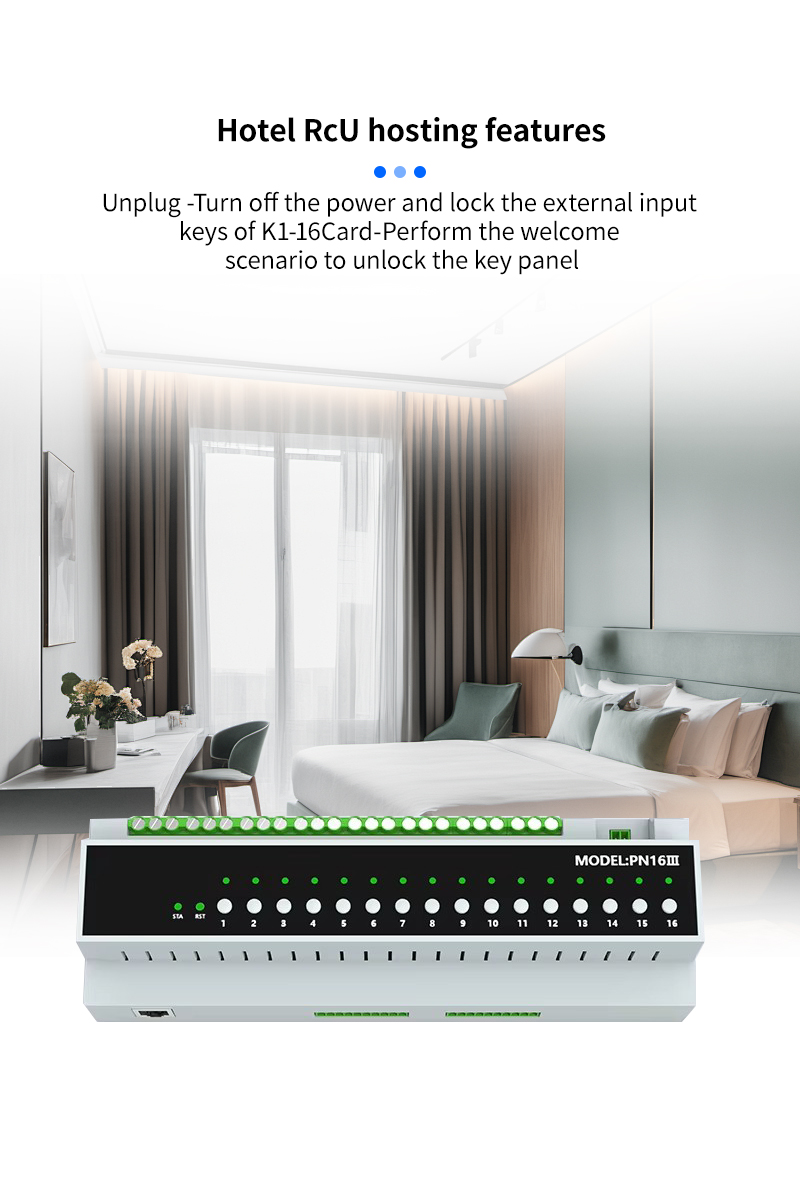

External key lock and unlock capability adds another layer of practical control. It helps prevent unwanted operation in shared environments and supports more disciplined system management. From a usability standpoint, this creates a better experience for the people actually touching the equipment, not just the people specifying it on paper.
LED indicators make channel status easy to confirm
Local keys provide immediate response at the panel
Lock/unlock support helps reduce unwanted switching
Organized 16-way structure improves cabinet clarity
Better visibility can shorten maintenance and commissioning time
The PN16 is suitable wherever multiple electrical loads need organized, centralized, and smarter control. Its structure makes it especially useful in projects where a combination of heavier circuits and standard circuits must coexist inside one coordinated system.
Typical applications include:
Lighting control systems
Manage multiple lighting groups across corridors, public spaces, villas, offices, or hospitality projects with cleaner scheduling and easier visibility.
Curtain and blind automation support
Multi-channel control logic suits projects where several motorized window coverings require organized switching.
Socket and appliance zoning
Segment power control by room, area, or function to make shutdown and restart routines more controlled.
Equipment room and cabinet management
Centralize output control for support loads and reduce the clutter of separate relay arrangements.
Smart retrofit projects
Add intelligent control to existing systems without abandoning familiar external switch methods.
The benefit across all these scenarios is consistency. Instead of treating each load as an isolated point, the PN16 helps transform them into a coordinated control layer.
Choosing the right power control product is not only about selecting a list of functions. It is about choosing a device that makes installation smoother, operation clearer, and long-term management less frustrating. That is where the PN16 stands apart.
Structured for real control tasks
The 16-way layout is designed for projects that need organized multi-load management, not improvised add-ons.
Balanced channel architecture
With 50A magnetic latching relays on channels 1–4 and 16A relays on channels 5–16, the controller is better suited to mixed-load environments.
Practical integration options
Support for RS485 and multiple switch types means the product can slot into more system designs with less compromise.
Smarter recovery after outages
The three power restoration modes help sites recover in a predictable and application-appropriate way.
Clearer daily operation
LED feedback, panel keys, and channel visibility reduce uncertainty for operators and maintenance teams.
Built for trust
Good control equipment should feel dependable before it says a word. This unit is made to give that impression through layout, logic, and ease of use.
Q1: What makes the PN16 different from a standard multi-relay controller?
The PN16 combines 16-channel control with a mixed relay structure, giving you four 50A magnetic latching relay channels and twelve 16A relay channels in one unit. That makes it more versatile for projects with different load levels instead of forcing every channel into the same electrical role.
Q2: Can I use this product with existing wall switches or external control devices?
Yes. The PN16 supports RS485, dry contact switches, reset switches, and rocker switches. This makes it suitable for both new installations and upgrade projects where existing control behavior needs to be preserved.
Q3: Is this controller only for remote smart control?
No. It supports local operation through panel keys as well. That means users can control channels directly at the device while still benefiting from optional WiFi or ZigBee communication in broader smart systems.
Q4: What happens after a power outage?
The PN16 provides three power recovery working modes: Power-off Mode, Power-on Mode, and Custom Scene Mode. This helps the system restart in a way that matches the application rather than relying on unpredictable default behavior.
Q5: What kinds of projects is it suitable for?
It is well suited for multi-load environments such as lighting control, curtain automation, socket grouping, equipment room output management, and smart retrofit projects that need more centralized and visible power control.
